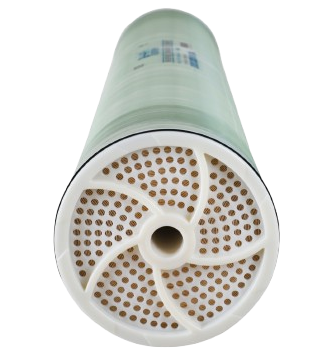

TSF06 SW-8040-MAX

Engineered for High Salinity | Made in Oman | Superior Performance.

The Tasnee SW Membrane is a premium Reverse Osmosis (RO) membrane element specifically designed for seawater desalination. Manufactured in Oman by Tasnee, it is built to deliver high salt rejection, excellent durability, and energy efficiency in harsh saline conditions.

Applications:

• Desalination plants (municipal & industrial).
• Marine & offshore platforms.
• Resorts, islands, and coastal communities.
• Power and utility sectors.

Key Features:

• 8040 Standard Size – Universally compatible with most seawater RO systems.
• High Rejection Rate – Removes >99.7% of total dissolved salts (TDS).
• Robust Design – Withstands high operating pressure and challenging feed water.

Backed by Tasnee’s in-house R&D and strict quality control, our SW membranes offer reliable performance tailored for Middle Eastern seawater conditions, aligning with Oman’s sustainability goals and regional water security needs.

Datasheet: TSF06 SW-8040-MAX

• General Product Description
• Configuration Spiral Wound
• Membrane Polymer Composite Polyamide
• Membrane Active Area 440 ft2 (40.9 m2)
• Feed Spacer 28 mil (0.7 mm)

Packaging: All membrane elements are supplied with a brine seal, interconnector, and O-rings. Elements are enclosed in a sealed polyethylene

bag containing less than 1.0% sodium meta-bisulfite solution, and then packaged in a cardboard box.

• A
• CONCENTRATE
• Element Details
• A, inches (mm) B, inches (mm) C, inches (mm)
• 40.0 (1016) 7.89 (200) 1.125 (28.6)

Values listed are indicative, not specified. For more detailed specifications, see our Technical Service Bulletin documents.

• Specified Performance*
• Permeate Flow: 11900 gpd (45 m3/d)
• Salt Rejection: 99.7% (99.5% minimum)
• Test Conditions: 32000 ppm NaCl solution
• 800 psig (5.5 MPa) Applied Pressure
• 77 F (25 C) Operating Temperature
• 8% Permeate Recovery
• 6.5 - 7.0 pH Range

*The Specified Performance is based on data taken after a minimum of 10 minutes of operation. Actual testing of elements may be done at

conditions which vary from these exact values; in which case, the performance is normalized back to these standard conditions. Permeate flow

for individual elements may vary ±15 percent from the value specified.

• Product Use and Restrictions
• Maximum Applied Pressure: 1200 psig (8.3 MPa)
• Maximum Chlorine Concentration: < 0.1 ppm
• Maximum Operating Temperature: 104 F (45 C)
• pH Range, Continuous (Cleaning): 2-11 (1-13)
• Maximum Feedwater Turbidity: 1.0 NTU
• Maximum Feedwater SDI (15 mins): 5.0
• Maximum Feed Flow: 75 gpm (17 m3/h)
• Minimum Brine Flow: 12 gpm (2.7 m3/h)
• Maximum Pressure Drop for Each Element: 15 psi (0.10 MPa)

The limitations shown here are for general use. For specified projects, operation at more conservative values may ensure the best

performance and longest life of the membrane. See TASNEE WATER SOLUTIONS for more details.

Disclaimer: The information and data are presented in good faith and in lieu of all warranties. All express or implied warranties, including the warranties of

merchantability and fitness for a particular purpose, are hereby disclaimed and excluded. Conditions and methods of use of our products are beyond our control.

TASNEE assumes no liability for results obtained or damages incurred through the application of the presented information and data. It is the user's responsibility to

determine the appropriateness of TASNEE'S products for the user's specific end uses.

• Tasnee Water Solutions Company LLC
• Muscat. P. O box - 2861.P.C-130.Sultanate of Oman

A, inches (mm)

B, inches (mm)

C, inches (mm)

40.0

(1016)

7.89

(200)

1.125

(28.6)
